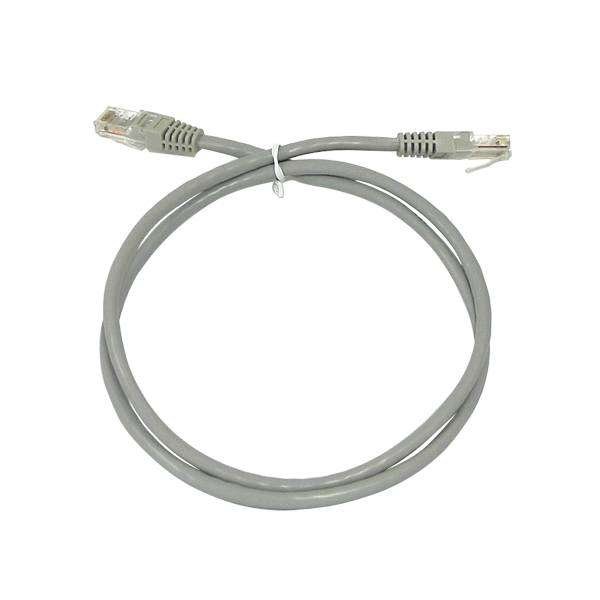

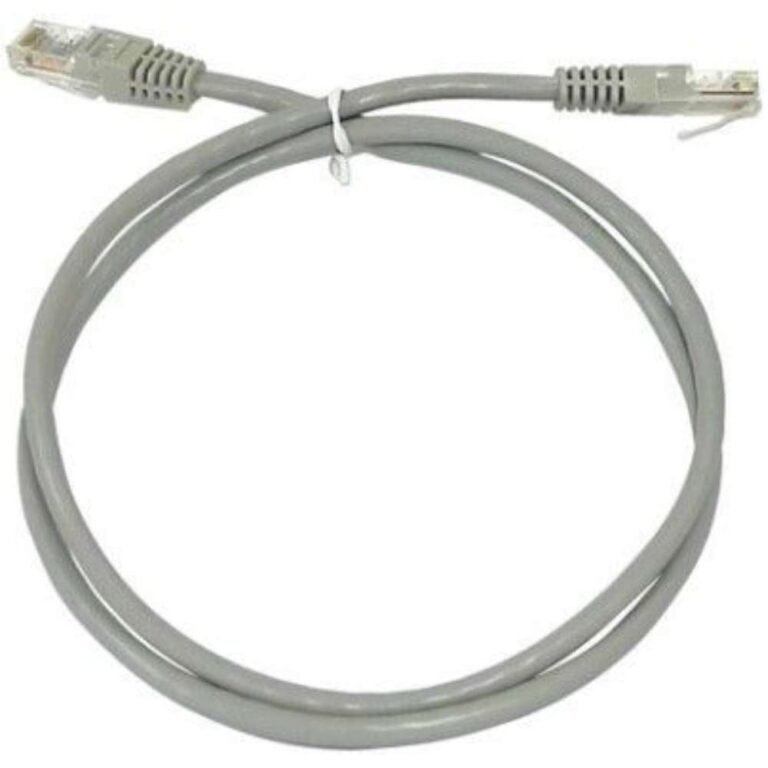

Professional Cat5E Patch CableModel: CC6300-10-GLength: 10 Feet | Color: Grey
Product Description:
The CC6300-10-G Cat5E patch cable delivers reliable network connectivity for enterprise environments, data centers, and professional IT installations. This 10-foot grey cable meets all TIA/EIA 568-B standards and supports data transfer speeds up to 1000 Mbps (1 Gigabit per second), making it ideal for modern network infrastructure requirements.
Engineered with high-quality unshielded twisted pair (UTP) construction, this cable ensures consistent performance and minimal crosstalk across all four pairs of conductors. The 24 AWG stranded copper core provides excellent conductivity while maintaining the flexibility needed for installation in tight spaces and around corners.
The RJ45 connectors on both ends feature gold-plated contacts (50 microns) for superior conductivity and corrosion resistance, ensuring long-term reliability and minimal signal degradation. Each connector is molded with a robust strain relief boot that prevents cable kinking and protects the critical termination points from excessive bending and potential damage during installation or maintenance.
Performance Specifications:
• Bandwidth: Up to 100 MHz• Maximum Data Rate: 1000 Mbps (1 Gigabit)• Impedance: 100 ± 15 ohms• Return Loss: 20 dB minimum• Wire Gauge: 24 AWG stranded copper• Conductor Type: Bare copper• Insulation: High-density polyethylene• Operating Temperature: -20°C to 60°C
Technical Compliance:
• TIA/EIA 568-B compliant• RoHS compliant• UL listed• ISO 9001 certified manufacturing• 100% factory tested
Use Cases:
This Cat5E patch cable is specifically designed for:
- Server room and data center rack connections
- Network switch to patch panel connections
- Workstation to wall outlet connectivity
- Network printer and IP camera installations
- VoIP phone system deployments
- General Ethernet network infrastructure
Quality Assurance:
Each CC6300-10-G undergoes rigorous factory testing to ensure compliance with Cat5E specifications. The cable is tested for continuity, pair mapping, and performance parameters including Near-End Crosstalk (NEXT), Return Loss, and insertion loss. A molded strain relief boot and snagless design protect the RJ45 connector during installation and prevent unwanted disconnections.
Installation Features:
The cable’s grey PVC jacket provides clear visibility in complex installations and helps with cable management organization. The stranded conductor design offers enhanced flexibility for routing through cable management systems and around tight corners. The snagless boot design prevents connector damage during installation and removal, particularly in high-density patch panels and network switches.
Reliability:
Built to withstand the demands of professional IT environments, this patch cable features:
- Robust PVC jacket resistant to everyday wear
- Gold-plated contacts for optimal connectivity
- Strain relief boot to prevent connector damage
- Full compliance with industry standards
- Manufacturer warranty coverage
The CC6300-10-G represents a professional-grade networking solution that combines reliable performance with durability and ease of installation. Its adherence to industry standards and comprehensive testing ensure consistent performance in critical network infrastructure applications.
This patch cable is backed by manufacturer support and meets or exceeds all relevant industry standards for Cat5E performance, making it a dependable choice for IT professionals and system integrators requiring reliable network connectivity solutions.
