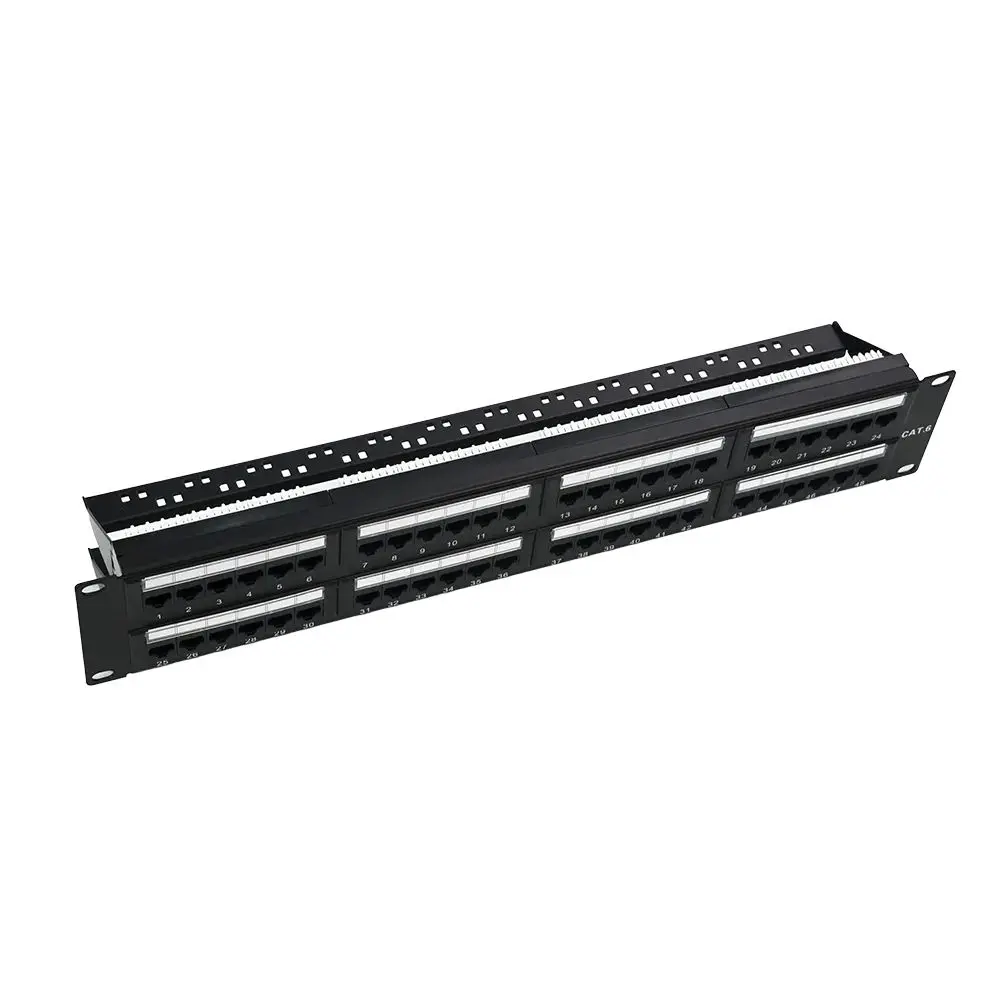

48-Port Cat6 Patch PanelProfessional Network Management Solution
This enterprise-grade 48-port Cat6 patch panel delivers superior connectivity management and reliable performance for modern network infrastructures. Engineered to meet TIA/EIA-568-C.2 standards, this patch panel provides exceptional signal integrity and supports data speeds up to 10 Gigabit Ethernet over copper cabling.
Key Specifications:• Port Capacity: 48 RJ45 ports• Category Rating: Cat6/Class E• Bandwidth Support: Up to 250 MHz• Data Transfer Speed: 10 Gigabit Ethernet (10GBase-T)• Mounting: Standard 19-inch rack mount (2U height)• Termination Type: 110 IDC (Insulation Displacement Contact)• Cable Type Compatibility: 22-26 AWG solid or stranded cable• Port Identification: Individual numbered ports with writeable label strips• Housing Material: Heavy-duty steel construction• PCB: Gold-plated contact points for enhanced conductivity
Performance Features:The patch panel incorporates advanced noise cancellation technology and enhanced crosstalk prevention, ensuring clean signal transmission across all 48 ports. Each port features specialized isolation chambers that minimize electromagnetic interference (EMI) between adjacent channels, maintaining data integrity even in high-density installations.
Installation and Management:Designed for efficient cable management, the panel features rear-facing 110 IDC terminals arranged at 180 degrees for optimal cable routing and reduced strain. The integrated cable management bar provides proper support for incoming cables, while the removable rear cover allows easy access during installation and maintenance.
Enterprise Applications:This patch panel is ideal for:
- Data center rack systems
- Enterprise network distributions
- Server room configurations
- Network operation centers
- Campus network deployments
- High-density telecommunications rooms
Reliability and Compliance:Built to exceed industry standards, the panel is fully tested to meet:
- ANSI/TIA-568-C.2
- ISO/IEC 11801 Class E
- IEEE 802.3an
- PoE/PoE+ compatibility (IEEE 802.3af/at)
- RoHS compliance
Performance Specifications:• Near-End Crosstalk (NEXT): >43dB @ 250 MHz• Power Sum NEXT: >40dB @ 250 MHz• Return Loss: >20dB @ 250 MHz• Insertion Loss: <0.2dB @ 250 MHz• Contact Resistance: 500 MΩ
Physical Specifications:• Dimensions: 19″ W x 3.5″ H x 2.25″ D (483mm x 89mm x 57mm)• Weight: 4.85 lbs (2.2 kg)• Operating Temperature: -10°C to 60°C• Storage Temperature: -40°C to 70°C• Humidity Range: 10% to 90% non-condensing
Quality Assurance:Each panel undergoes rigorous testing including:
- Channel performance verification
- Wire mapping accuracy
- Continuity testing
- Signal integrity validation
- Physical stress testing
The 48-port Cat6 patch panel combines professional-grade construction with superior performance characteristics, making it an ideal choice for network infrastructure deployments requiring reliable, high-speed connectivity. Its robust design and comprehensive testing ensure long-term reliability and consistent performance in demanding enterprise environments.
Package Contents:• 48-Port Cat6 Patch Panel• Mounting hardware kit• Cable management bar• Installation guide• Zip ties (12)• Port identification labels
This patch panel carries a standard 5-year manufacturer warranty against defects in materials and workmanship under normal use conditions.
