Description

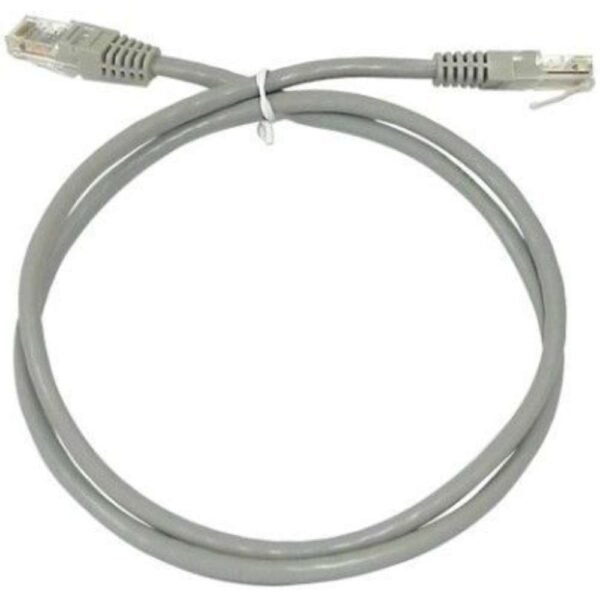

Professional CAT5E Network Patch CableModel: CC6300-6-G | Length: 6 Feet | Color: Grey
Product Description:The CC6300-6-G CAT5E patch cable delivers reliable network connectivity for enterprise environments, data centers, and professional workstations. This 6-foot cable meets all TIA/EIA 568-B standards and supports data transfer speeds up to 1000 Mbps (1 Gigabit per second), making it ideal for standard Ethernet networks and Fast Ethernet applications.
Construction & Durability:Engineered with high-quality unshielded twisted pair (UTP) copper conductors, this cable features 24 AWG stranded copper wire wrapped in a durable PVC jacket. The grey outer sheath provides easy identification in complex cable management scenarios while offering protection against everyday wear and tear. Each connector is carefully molded to prevent snag and features a robust strain relief boot to maintain cable integrity during repeated use.
Performance Specifications:
- Bandwidth capacity: Up to 100 MHz
- Maximum data transfer rate: 1000 Mbps (1 Gbps)
- Impedance: 100 Ohms ± 15%
- Return Loss: 20 dB minimum
- Near-End Crosstalk (NEXT): 35 dB minimum
- Operating temperature range: -20°C to 60°C
Compliance & Certification:This patch cable adheres to strict industry standards, including:• TIA/EIA 568-B.2• ISO/IEC 11801• RoHS compliance for environmental safety• UL listed for safety assurance• ETL verified performance
Applications:The CC6300-6-G is versatile enough for numerous networking applications:
- Connecting workstations to wall outlets or patch panels
- Server rack and data center connectivity
- Network switch to patch panel connections
- Desktop to network printer linkage
- PoE (Power over Ethernet) device connections
- Security camera system installation
Installation & Compatibility:Each end features high-quality RJ45 connectors with gold-plated contacts (50 microns) ensuring optimal signal integrity and corrosion resistance. The snagless design facilitates easy installation in tight spaces and high-density environments. Compatible with all standard Ethernet network equipment including:
- Network Interface Cards (NICs)
- Switches and routers
- Patch panels
- Network attached storage (NAS)
- VoIP phones
- Security cameras
Quality Assurance:Every cable undergoes rigorous testing for:
- Wire map accuracy
- Length verification
- Continuity testing
- Return loss measurement
- Crosstalk compliance
- Signal attenuation levels
Key Technical Specifications:• Cable Type: CAT5E UTP• Length: 6 feet (1.83 meters)• Conductor: 24 AWG stranded copper• Connector Type: RJ45 with gold plating• Jacket Material: PVC• Color: Grey• Bandwidth: 100 MHz• Maximum Data Rate: 1000 Mbps• TIA/EIA 568-B compliant• Operating Temperature: -20°C to 60°C
The CC6300-6-G represents a professional-grade networking solution that balances performance, reliability, and cost-effectiveness. Its standardized construction ensures compatibility across all major networking equipment while providing the necessary durability for long-term deployment in professional environments. Whether used in enterprise networks, small business setups, or data center installations, this cable delivers consistent, reliable performance for all standard Ethernet applications.
